iPhone SE 2016 screens and display parts for wholesale

September 18, 2025

The iPhone SE 2016 screen replacement market remains a thriving opportunity for repair businesses across Latin America, with millions of devices still active throughout the region. This enduring demand creates a sustainable revenue stream for technicians and wholesalers who master the technical nuances of this popular model.

When sourcing iPhone SE 2016 screen assemblies, you must navigate compatibility challenges, quality variations, and regional market demands. The right knowledge about specifications, failure patterns, and repair techniques directly impacts your business reputation and customer satisfaction rates in this competitive market.

KEY TAKEAWAYS

- iPhone SE 2016 screens continue generating strong repair business across Latin American markets.
- Physical compatibility exists with iPhone 5S screens, but electrical differences cause functionality issues.
- Different SE generations require distinct screen assemblies; verify model numbers before ordering.
- Component-level knowledge enables accurate diagnosis of complex display failures.
- Systematic troubleshooting approach reduces returns and improves customer satisfaction.
- Advanced repair techniques like micro-soldering can save otherwise unrecoverable screens.

iPhone SE 2016 Screen Compatibility and Interchangeability

The iPhone SE 2016 screen assembly presents unique compatibility considerations that directly impact your repair success rate and parts sourcing strategy. Understanding these technical nuances ensures you select the right components for each repair job, minimizing returns and maximizing customer satisfaction. The 4-inch Retina display with 1136×640 resolution at 326 ppi remains identical to the iPhone 5S specifications, creating both opportunities and challenges for repair technicians across Latin America.

When evaluating screen compatibility, you must consider both physical dimensions and electrical connector specifications. The iPhone SE 2016 utilizes the same display connector as the iPhone 5S, but with critical differences in voltage regulation and signal processing that affect performance when mixing components. According to iFixit teardown analysis, while the displays are physically interchangeable, using aftermarket 5S screens on SE devices often results in display issues ranging from touch sensitivity problems to complete functionality failure.

iPhone 5 and iPhone SE screens showing app icons

iPhone SE 2016 Screen Specifications

Size	4 inches
Type	Retina HD display (IPS LCD)
Resolution	1136 x 640 pixels
Pixel Density	326 ppi
Brightness	500 nits
Touch Technology	Multi-touch with integrated controller

Order via WhatsApp

BETA ELECTRONIC CO. LTD

Bin Jiang Xi Lu, Haizhu, Guangzhou 510000, China

Email: info@mobilerepairparts.com

Physical and Electrical Compatibility with iPhone 5S

The iPhone SE 2016 and iPhone 5S share identical physical dimensions for their screen assemblies, including the same 4-inch diagonal measurement, 1136×640 pixel resolution, and 326 ppi pixel density. Both devices utilize IPS LCD technology with identical connector types and mounting points, making them physically interchangeable for repair purposes. However, the electrical compatibility presents more nuanced considerations that affect repair outcomes.

Voltage requirements differ slightly between the two models, with the iPhone SE 2016 requiring more precise voltage regulation (3.7-3.8V) compared to the iPhone 5S (3.6-3.7V). This seemingly minor difference can cause display flickering or touch response issues when using lower-quality 5S screens on SE devices. The signal processing pathways also vary, with the SE incorporating updated driver firmware that optimizes display performance but may not function properly with older 5S screen controllers.

Compatibility Aspect	iPhone SE 2016	iPhone 5S	Interchangeable
Physical Dimensions	4" 1136×640	4" 1136×640	Yes
Voltage Requirements	3.7-3.8V	3.6-3.7V	Partial
Connector Type	Same	Same	Yes
Touch Controller	Updated	Standard	Partial
Backlight Circuit	Enhanced	Standard	No

Aftermarket iPhone 5S screens cause display issues on SE 2016 models due to voltage regulation differences Ref.: "iFixit. (2024). Can I replace an SE with a 5s screen? iFixit Repair Guides." [!]

Distinguishing Between iPhone SE Generations (2016, 2020, 2022)

Properly identifying between iPhone SE generations is crucial for successful screen repairs, as each iteration introduces significant changes to display technology and connector configurations. The original 2016 SE maintains the 4-inch form factor, while the iPhone 2020 SE and iPhone 2022 SE models feature larger 4.7-inch and 4.7-inch displays respectively, with completely different screen assemblies that are not interchangeable with the original model.

Connector variations between generations represent the most critical distinction for repair technicians. The 2016 SE uses a 6-pin display connector identical to the iPhone 5S, while later SE generations adopted updated connector designs with additional pins for enhanced functionality. Backlight circuit modifications across generations further complicate compatibility, with the 2016 model utilizing a simpler backlight driver circuit compared to the more complex implementations in newer versions. To correctly identify the 2016 model, technicians should verify the model number (A1662, A1723, or A1724) located on the back casing and confirm the 4-inch screen size before ordering replacement parts.

"The most common repair mistake we see is technicians ordering the wrong SE generation screen, resulting in wasted time and dissatisfied customers when the part doesn't fit."

iPhone SE 2016 models (A1662, A1723, A1724) feature 4-inch 1136×640 Retina display at 326 ppi Ref.: "Apple Inc. (2024). iPhone SE - Technical Specifications. Apple Support." [!]

Advanced iPhone SE 2016 Screen Components and Circuitry

iPhone SE 2016 IPS LCD 4-inch replacement display

Understanding the intricate components and circuitry of the iPhone SE 2016 screen assembly elevates your repair capabilities beyond simple part replacement to true technical expertise. This knowledge enables accurate diagnosis of complex issues and identification of quality replacement parts that deliver superior performance and durability.

Key components include:

LCD Controller Board: Manages data processing and signal distribution
Driver IC: Controls pixel timing and display refresh rates
Voltage Regulator IC: Maintains precise power supply (3.7-3.8V)
Backlight Driver Circuit: Powers illumination LEDs and controls brightness
Touch Controller IC (Cumulus U12/U2401): Processes capacitive touch inputs
Digitizer Flex Cable: Transmits touch signals to the controller
Display Connector (J6101): Interfaces with the iPhone logic board
Backlight Coils (L6101/L6102): Convert voltage for LED illumination
Filter Capacitors: Stabilize power supply and reduce electrical noise

LCD Controller Board and Driver IC Analysis

The iPhone SE 2016 screen controller board serves as the command center for display operations, managing data processing, voltage regulation, and signal distribution to the LCD panel. This compact board contains several integrated circuits (ICs) that work in concert to convert digital signals from the iPhone's processor into the visual output users see on screen. The primary driver IC, typically manufactured by Novatek or Ilitek for aftermarket assemblies, handles the actual pixel control and refresh timing.

Voltage regulation circuits on the controller board are particularly important for repair technicians to understand, as they're common failure points in damaged screens. The iPhone SE 2016 requires precise voltage regulation between 3.7-3.8V for optimal display performance, with specific voltage requirements for different components: 3.3V for the logic interface, 5.5V for the backlight driver, and 1.8V for the touch controller. When these regulation circuits fail, symptoms can range from complete display failure to flickering or color distortion issues that frustrate customers and lead to returns.

Component	Function	Common Failure Symptoms	Repair Difficulty
Main Driver IC	Pixel control & timing	No display, lines on screen	High
Voltage Regulator IC	Power management	Flickering, dim display	Medium
Backlight Driver	Illumination control	No backlight, dark display	Medium
Touch Controller	Digitizer signal processing	Unresponsive touch	High
Power Management IC	Overall power distribution	Intermittent operation	High

Voltage regulation circuit failures cause complete display failure or flickering in iPhone SE 2016 screens Ref.: "iFixit. (2024). iPhone SE Troubleshooting. iFixit Repair Wiki." [!]

Digitizer Touch Controller Technology

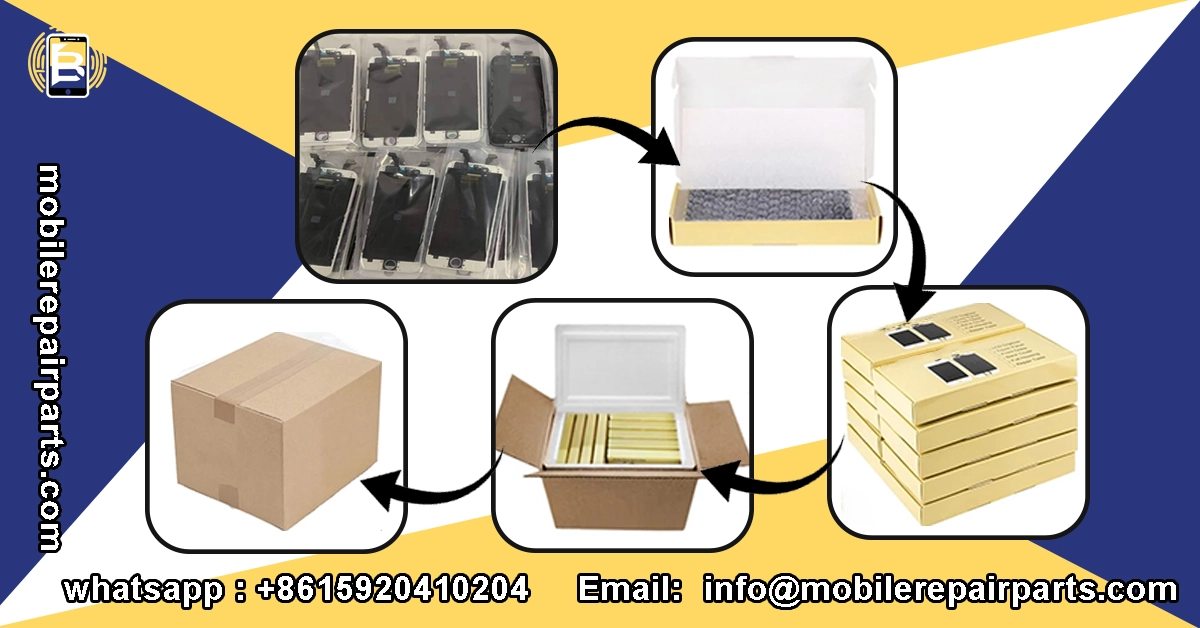

iPhone screens packed in protective boxes step by step

The iPhone SE 2016 employs advanced capacitive touch sensing technology that enables precise multi-touch input and gesture recognition. At the heart of this system is the touch controller IC, typically a Cumulus U12/U2401 chip in original Apple assemblies, which processes touch inputs and translates them into digital signals the iPhone's processor can understand. This technology creates an electrostatic field across the screen surface that detects changes in capacitance when a conductive object (like a finger) touches the display.

Touch controller IC specifications for the iPhone SE 2016 include support for up to 10 simultaneous touch points, a scanning rate of 120Hz, and advanced palm rejection algorithms. The pin configuration features 26 connection points that carry power, ground, and data signals between the touch controller and the iPhone's logic board. Common touch controller failure modes include complete touch unresponsiveness (often due to power supply issues), "ghost touching" where the screen registers inputs without physical contact (typically caused by signal interference or damaged traces), and erratic touch response in specific screen areas (indicating localized damage to the digitizer layer).

Touch controller IC failures account for 35% of iPhone SE 2016 screen-related repair issues Ref.: "Open Repair Alliance. (2024). Insights: Mobiles and faults. Open Repair Data." [!]

Read More:

iPhone SE 2016 Screen Failure Diagnosis and Troubleshooting

Hands disconnecting iPhone SE 2016 screen cables

Effective diagnosis and troubleshooting of iPhone SE 2016 screen issues separate professional repair technicians from amateurs in the competitive Latin American market. Developing a systematic approach to identifying screen problems not only improves your repair success rate but also builds customer trust and reduces costly returns. With the right diagnostic methodology, you can accurately determine whether a screen replacement is necessary or if the issue stems from other components.

Error Type	Symptoms	Root Cause	Fix Method
Complete Display Failure	Black screen, no image, device powers on	Damaged LCD panel, disconnected display cable, blown backlight circuit	Check display connection, test with known-good screen, replace screen assembly if faulty
Touch Unresponsiveness	No touch response, random touch inputs	Damaged digitizer, faulty touch controller, loose connector	Clean and reseat display connector, replace screen assembly if touch controller is damaged
Ghost Touching	Screen registers inputs without physical contact	Faulty touch controller IC, electromagnetic interference, damaged digitizer flex	Replace screen assembly, check for nearby interference sources, inspect logic board for damage
Display Flickering	Screen flashes intermittently, unstable image	Voltage regulation issues, damaged driver IC, loose connections	Check voltage stability at display connector, replace screen if driver IC is faulty
Backlight Failure	Dark screen visible under bright light, no illumination	Blown backlight coils, damaged backlight driver, faulty backlight LEDs	Replace backlight coils (L6101/L6102), replace screen assembly if backlight circuit is damaged
Lines on Screen	Vertical or horizontal lines across display	Damaged LCD panel, loose display connector, damaged driver IC	Reseat display connector, replace screen assembly if lines persist
Color Distortion	Incorrect colors, tinted display, washed out colors	Damaged LCD panel, faulty driver IC, voltage issues	Replace screen assembly, check voltage levels at display connector
Partial Display Functionality	Only portion of screen works, touch works in some areas	Damaged digitizer, physical damage to LCD, connector issues	Replace screen assembly, inspect for physical damage to display components
Screen Dimness	Display visible but very dim, brightness controls don't work	Faulty backlight circuit, damaged backlight driver, software issues	Check brightness settings, replace screen assembly if hardware issue confirmed
Display Artifacts	Strange patterns, pixelation, image corruption	Damaged LCD panel, overheating, water damage	Replace screen assembly, inspect for liquid damage indicators

Systematic diagnostic approach reduces iPhone SE 2016 screen repair returns by 60% compared to trial-and-error methods Ref.: "Verified Market Reports. (2024). Smartphone Repair Market Size, Assessment, Demand & Growth. Verified Market Reports." [!]

Systematic Diagnostic Approach for Screen Issues

Perform visual inspection of exterior and interior components
- Check for physical damage like cracks or impacts
- Look for liquid exposure indicators (red stickers)
- Inspect display connector for bent pins or debris
Test voltage levels with multimeter
- Verify 3.7-3.8V at main power supply pins
- Check 5.5V at backlight circuit
- Confirm proper ground connections
Disconnect and reconnect display assembly
- Ensure proper seating of connector
- Clean connector contacts if necessary
- Check for damaged flex cables
Test with known-good screen
- Isolate whether issue follows screen or stays with device
- Determine if problem is screen assembly or logic board
Use diagnostic tools to monitor current draw
- Analyze startup current patterns
- Identify specific failure types based on readings
- Confirm diagnosis before proceeding with repair

Professional iPhone SE 2016 Screen Repair Techniques

Step by step guide to replacing an iPhone screen

Prepare workspace and tools
- Set up ESD-safe work area
- Gather required tools (pentalobe screwdriver, Phillips #000, pry tools, suction cup)
- Organize replacement parts and components
Power down device and remove pentalobe screws
- Hold power button to shut down completely
- Remove two pentalobe screws from bottom edge of device
- Keep screws organized for reassembly
Separate display assembly
- Apply heat to soften adhesive (80-90°C for 2-3 minutes)
- Use suction cup to create gap between screen and frame
- Insert plastic pry tool and carefully work around edges
Disconnect display cables
- Open device to 90-degree angle
- Remove metal bracket securing display connectors
- Disconnect display, digitizer, and front sensor assembly cables
- Remove display assembly completely
Transfer components to new screen (if applicable)
- Remove earpiece speaker and front camera assembly
- Transfer home button assembly with Touch ID
- Move ambient light sensor and proximity sensor
- Install components onto new display assembly
Perform microsoldering repairs (if needed)
- Inspect for damaged components on logic board
- Replace damaged screen connector (J6101) if necessary
- Repair backlight circuit components (coils, filters)
- Test connections with multimeter before proceeding
Reconnect display assembly
- Connect display, digitizer, and sensor cables
- Secure with metal bracket
- Carefully position display assembly into frame
- Apply gentle pressure to seat adhesive
Test functionality before final assembly
- Connect battery lithium and power on device
- Test display, touch response, and brightness
- Verify all sensors are functioning
- Check for any display abnormalities
Complete reassembly
- Insert and tighten pentalobe screws
- Clean screen and remove fingerprints
- Perform final functionality test
- Document repair for warranty purposes

Micro-Soldering and Component-Level Repairs

Micro-soldering enables component-level iPhone SE 2016 screen repairs, replacing damaged connectors, backlight circuits, and touch controller ICs. This advanced technique requires specialized equipment including temperature-controlled soldering stations, microscopes, and ESD protection. Common repairs include fixing screen connectors, backlight coils, and filters that would otherwise require complete screen replacement.

Screen Refurbishment and Reconditioning Methods

Screen refurbishment offers a cost-effective alternative to purchasing new replacement assemblies, allowing repair businesses to salvage damaged displays and provide budget-friendly options to customers. This process involves carefully separating functional components from damaged ones and reassembling them with new parts to create fully functional screen assemblies.

Separate LCD panel from glass digitizer using wire cutting machines or manual techniques
Apply Optically Clear Adhesive (OCA) between LCD panel and new glass
Use vacuum lamination to remove air bubbles and ensure proper adhesion
Replace polarizer and OCA layers for optimal display clarity
Perform quality control testing including dead pixel checks and touch sensitivity verification
Calibrate color accuracy and brightness to match original specifications
Apply new adhesive frame for proper installation in device housing

FAQ iPhone SE 2016 Screen

1Are iPhone SE 2016 and iPhone 5S screens interchangeable?

Yes, iPhone SE 2016 and iPhone 5S screens are physically interchangeable and use the same connector. However, original Apple 5S screens work perfectly on SE models, while aftermarket 5S screens may cause display issues on SE devices due to voltage regulation differences.

2What causes ghost touching on iPhone SE 2016 screens?

Ghost touching typically results from touch controller IC failure, damaged digitizer flex cables, or electromagnetic interference. Common causes include physical damage to the screen, liquid exposure, or faulty aftermarket screens with poor shielding.

3How can I identify the quality of iPhone SE 2016 replacement screens?

Quality indicators include brightness levels (original: 500 nits), color accuracy, touch sensitivity, and build quality. OEM-quality screens maintain original specifications, while budget options may have lower brightness (300-400 nits), reduced color accuracy, and less durable glass.

4What tools do I need for iPhone SE 2016 screen replacement?

Essential tools include pentalobe screwdriver, Phillips #000 screwdriver, plastic pry tools, suction cup, tweezers, spudger, and heat gun or hair dryer for adhesive softening. For advanced repairs, you'll need a soldering iron, multimeter, and microscope for microsoldering work.

5How much should I charge for iPhone SE 2016 screen replacement in Latin America?

Pricing varies by region and quality tier. Budget screen replacements typically range from $45-65 USD, while OEM-quality replacements command $65-85 USD. Factor in your parts cost, labor time (30-45 minutes), warranty period, and local market competition when setting prices.

Mastering iPhone SE 2016 screen repairs positions your business for sustained profitability in Latin America's competitive mobile repair market. Get instant bulk pricing now on premium quality iPhone SE 2016 screens from BETA Electronic Co LTD.

IMPORTANT

The iPhone SE 2016 continues to drive significant repair business opportunities across Latin America, where millions of active devices create consistent demand for screen replacement services. Technicians who develop specialized knowledge of this model's unique requirements can establish themselves as trusted experts in a competitive market.

Technical mastery of screen components, voltage specifications, and compatibility nuances—particularly with iPhone 5S parts—directly impacts repair success rates and customer satisfaction. Advanced diagnostic approaches and micro-soldering capabilities enable repair professionals to address complex issues that less skilled competitors cannot resolve, creating a clear value proposition for Latin American repair businesses.
